Analysis

The final stage checks that the shared dataset is useful and free of hidden bugs, and brings the rescued rainfall to life as animated maps. Everything here is computed from the deliverable itself — the exported SEF files — not from the working databases.

Three notebooks:

• analyse_sef_output.ipynb

• generate_rainfall_animation.ipynb

• generate_sef_animation.ipynb

Summarising the shared data

analyse_sef_output produces a series of summary figures — coverage, QC pass rates, rainfall trends and intensity, the wettest days, extreme-rainfall frequency, and a cross-check against known historical floods and droughts. The goal is twofold: show the data is useful, and surface bugs (a bad transcription batch, a units slip, a QC edge case) before shipping.

Reading the raw .tsv tree for every figure would be slow, so the SEF files are first parsed once into a compact Parquet analysis dataset (observations plus precomputed daily_national aggregates) that the notebook then queries cheaply with DuckDB. Build that dataset in parallel on the cluster — one array task per SEF year, no merge stage — with:

scripts/slurm/submit_sef_analysis.sh

Important

The station network grows enormously over the record, from a handful of gauges to thousands. The national series are simple means over the reporting stations, so absolute levels are coverage-influenced; coverage-sensitive metrics are shown as rates per reporting station. Treat between-era comparisons with care.

Animating the rainfall field

Two notebooks turn the daily rainfall into a smoothed animated map of the UK, interpolating several frames between each day so the field appears to evolve continuously. Rendering a full run is thousands of frames, so the work is done on the cluster and only the finished MP4 is brought back for display.

Both use the same four-stage SLURM pipeline, chained with --dependency=afterok:

Stage	SLURM	Purpose
precompute	1 job	write manifest.json describing every frame and the shard boundaries
render	array 0–(N-1)	render each shard’s contiguous block of frames in parallel
validate	1 job	confirm every expected frame exists
encode	1 job	ffmpeg the frame sequence into an H.264 MP4

Every frame has a global index fixed by the date range and the frames-per-day setting, so shards never collide and any failed shard can be re-run on its own.

Consensus animation

generate_rainfall_animation animates the consensus daily rainfall (median over the five members, values in inches), styled like the static maps. Start with a single test year, then raise the shard count for the full record:

scripts/slurm/submit_animation.sh

Shared (SEF) animation

generate_sef_animation animates the data exactly as it is shared — reading only the SEF .tsv files. It is the counterpart to the consensus animation, with two differences: values are in millimetres, and QC is made visible — a station that passed either check is drawn with its value, while one that failed both is drawn as a red error cross and excluded from the field.

scripts/slurm/submit_sef_animation.sh

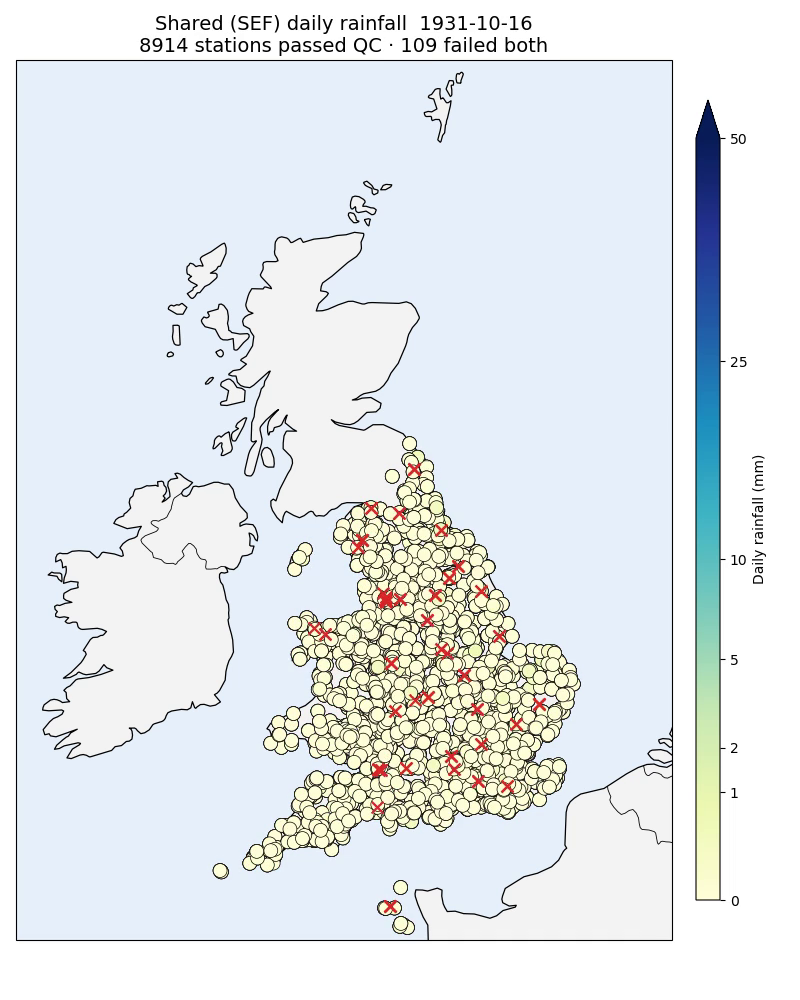

A single frame from the shared (SEF) rainfall animation. Values are in millimetres, and stations that failed both QC checks are marked with a red cross rather than a rainfall value.

This is the end of the workflow. To reproduce or extend any part of it, see How to reproduce and extend.
