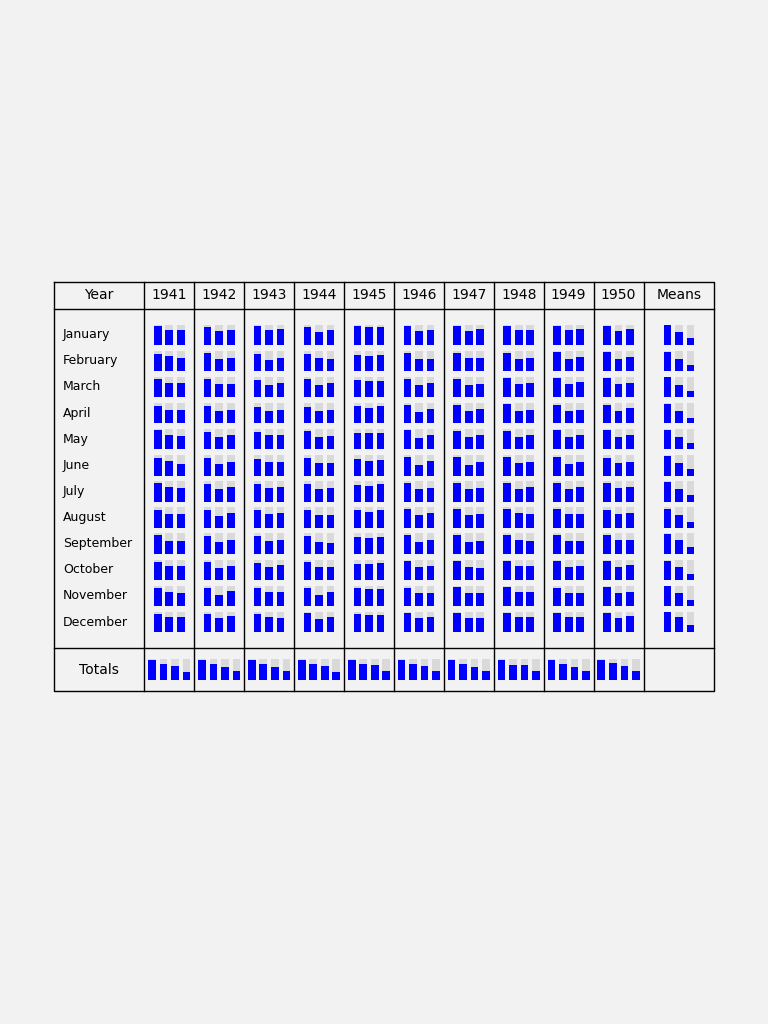

Transcription accuracy by page location¶
Mean probability of correctness for digits from the test dataset, as transcribed by the deep-convolutional transcriber after 200 epochs training. Partitioned by location in the image.¶
Code to make figure
#!/usr/bin/env python
# Success probability by position on page
import os
import sys
import tensorflow as tf
import numpy
import itertools
import matplotlib
from matplotlib.backends.backend_agg import FigureCanvasAgg as FigureCanvas
from matplotlib.figure import Figure
from matplotlib.patches import Rectangle
from matplotlib.lines import Line2D
sys.path.append("%s/../" % os.path.dirname(__file__))
from transcriberModel import transcriberModel
sys.path.append("%s/../../dataset" % os.path.dirname(__file__))
from makeDataset import getImageDataset
from makeDataset import getNumbersDataset
import argparse
parser = argparse.ArgumentParser()
parser.add_argument("--epoch", help="Epoch", type=int, required=False, default=25)
# Set nimages to a small number for fast testing
parser.add_argument(
"--nimages",
help="No of test cases to look at",
type=int,
required=False,
default=None,
)
args = parser.parse_args()
# Set up the model and load the weights at the chosen epoch
transcriber = transcriberModel()
weights_dir = ("%s/ML_ATB2/models/deep_convolutional_transcriber/" + "Epoch_%04d") % (
os.getenv("SCRATCH"),
args.epoch - 1,
)
load_status = transcriber.load_weights("%s/ckpt" % weights_dir)
# Check the load worked
load_status.assert_existing_objects_matched()
# Make the probability matrix
testImages = getImageDataset(purpose="test", nImages=args.nimages)
testNumbers = getNumbersDataset(purpose="test", nImages=args.nimages)
testData = tf.data.Dataset.zip((testImages, testNumbers))
count = 0
pmatrix = numpy.zeros((436))
for testCase in testData:
image = testCase[0]
orig = testCase[1]
encoded = transcriber(tf.reshape(image, [1, 1024, 768, 3]), training=False)
for tidx in range(436):
originalDigit = numpy.where(orig[tidx, :] == 1.0)[0][0]
dgProbabilities = encoded[0, tidx, originalDigit]
pmatrix[tidx] += dgProbabilities
count += 1
pmatrix /= count
# Plot encoded using same method as original plot
fig = Figure(
figsize=(7.68, 10.24),
dpi=100,
facecolor="white",
edgecolor="black",
linewidth=0.0,
frameon=False,
subplotpars=None,
tight_layout=None,
)
canvas = FigureCanvas(fig)
# Paint the background white - why is this needed?
ax_full = fig.add_axes([0, 0, 1, 1])
ax_full.set_xlim([0, 1])
ax_full.set_ylim([0, 1])
ax_full.add_patch(
matplotlib.patches.Rectangle((0, 0), 1, 1, fill=True, facecolor=(.95,.95,.95,1))
)
ax_full.set_axis_off()
imp = {
"scale": 1.0,
"xscale": 1.0,
"yscale": 1.0,
"xshift": 0.0, # pixels, +ve right
"yshift": 0.0, # pixels, +ve up
"rotate": 0.0, # degrees clockwise
"linewidth": 1.0,
"bgcolour": (1.0, 1.0, 1.0),
"fgcolour": (0.0, 0.0, 0.0),
"yearHeight": 0.066, # Fractional height of year row
"totalsHeight": 0.105, # Fractional height of totals row
"monthsWidth": 0.137, # Fractional width of months row
"meansWidth": 0.107, # Fractional width of means row
"fontSize": 10,
"year": 1941,
}
# Box with the data in
topLeft = (0.07 + imp["xshift"] / 768, 0.725 + imp["yshift"] / 1024)
topRight = (
0.93 + imp["xshift"] / 768 + (imp["xscale"] - 1) * 0.86,
0.725 + imp["yshift"] / 1024,
)
bottomLeft = (0.07 + imp["xshift"] / 768, 0.325 + imp["yshift"] / 1024)
bottomRight = (
0.93 + imp["xshift"] / 768 + (imp["xscale"] - 1) * 0.86,
0.325 + imp["yshift"] / 1024 - (imp["yscale"] - 1) * 0.4,
)
ax_full.add_line(
Line2D(
xdata=(topLeft[0], topRight[0], bottomRight[0], bottomLeft[0], topLeft[0]),
ydata=(topLeft[1], topRight[1], bottomRight[1], bottomLeft[1], topLeft[1]),
linestyle="solid",
linewidth=imp["linewidth"],
color=imp["fgcolour"],
zorder=1,
)
)
def topAt(x): # x is fraction along top line
return (
topRight[0] * x + topLeft[0] * (1 - x),
topRight[1] * x + topLeft[1] * (1 - x),
)
def bottomAt(x):
return (
bottomRight[0] * x + bottomLeft[0] * (1 - x),
bottomRight[1] * x + bottomLeft[1] * (1 - x),
)
def leftAt(y): # y is fraction of way from bottom to top
return (
topLeft[0] * y + bottomLeft[0] * (1 - y),
topLeft[1] * y + bottomLeft[1] * (1 - y),
)
def rightAt(y):
return (
topRight[0] * y + bottomRight[0] * (1 - y),
topRight[1] * y + bottomRight[1] * (1 - y),
)
# Draw the grid
lft = leftAt(1.0 - imp["yearHeight"])
rgt = rightAt(1.0 - imp["yearHeight"])
ax_full.add_line(
Line2D(
xdata=(lft[0], rgt[0]),
ydata=(lft[1], rgt[1]),
linestyle="solid",
linewidth=imp["linewidth"],
color=imp["fgcolour"],
zorder=1,
)
)
lft = leftAt(imp["totalsHeight"])
rgt = rightAt(imp["totalsHeight"])
ax_full.add_line(
Line2D(
xdata=(lft[0], rgt[0]),
ydata=(lft[1], rgt[1]),
linestyle="solid",
linewidth=imp["linewidth"],
color=imp["fgcolour"],
zorder=1,
)
)
tp = topAt(imp["monthsWidth"])
bm = bottomAt(imp["monthsWidth"])
ax_full.add_line(
Line2D(
xdata=(tp[0], bm[0]),
ydata=(tp[1], bm[1]),
linestyle="solid",
linewidth=imp["linewidth"],
color=imp["fgcolour"],
zorder=1,
)
)
tp = topAt(1.0 - imp["meansWidth"])
bm = bottomAt(1.0 - imp["meansWidth"])
ax_full.add_line(
Line2D(
xdata=(tp[0], bm[0]),
ydata=(tp[1], bm[1]),
linestyle="solid",
linewidth=imp["linewidth"],
color=imp["fgcolour"],
zorder=1,
)
)
for yrl in range(1, 10):
x = imp["monthsWidth"] + yrl * (1.0 - imp["meansWidth"] - imp["monthsWidth"]) / 10
tp = topAt(x)
bm = bottomAt(x)
ax_full.add_line(
Line2D(
xdata=(tp[0], bm[0]),
ydata=(tp[1], bm[1]),
linestyle="solid",
linewidth=imp["linewidth"],
color=imp["fgcolour"],
zorder=1,
)
)
# Add the fixed text
tp = topAt(imp["monthsWidth"] / 2)
lft = leftAt(1.0 - imp["yearHeight"] / 2)
ax_full.text(
tp[0],
lft[1],
"Year",
fontsize=imp["fontSize"],
horizontalalignment="center",
verticalalignment="center",
)
tp = topAt(1.0 - imp["meansWidth"] / 2)
lft = leftAt(1.0 - imp["yearHeight"] / 2)
ax_full.text(
tp[0],
lft[1],
"Means",
fontsize=imp["fontSize"],
horizontalalignment="center",
verticalalignment="center",
)
tp = topAt(imp["monthsWidth"] / 2)
lft = leftAt(imp["totalsHeight"] / 2)
ax_full.text(
tp[0],
lft[1],
"Totals",
fontsize=imp["fontSize"],
horizontalalignment="center",
verticalalignment="center",
)
months = (
"January",
"February",
"March",
"April",
"May",
"June",
"July",
"August",
"September",
"October",
"November",
"December",
)
tp = topAt(imp["monthsWidth"] / 10)
for mdx in range(len(months)):
lft = leftAt(
1.0
- imp["yearHeight"]
- (mdx + 1)
* (1.0 - imp["yearHeight"] - imp["totalsHeight"])
/ (len(months) + 1)
)
ax_full.text(
tp[0],
lft[1],
months[mdx],
fontsize=imp["fontSize"] - 1,
horizontalalignment="left",
verticalalignment="center",
)
lft = leftAt(1.0 - imp["yearHeight"] / 2)
for ydx in range(10):
x = (
imp["monthsWidth"]
+ (ydx + 0.5) * (1.0 - imp["meansWidth"] - imp["monthsWidth"]) / 10
)
tp = topAt(x)
ax_full.text(
tp[0],
lft[1],
"%04d" % (imp["year"] + ydx),
fontsize=imp["fontSize"],
horizontalalignment="center",
verticalalignment="center",
)
# Add the transcribed numbers
tidx = 0
for yri in range(10):
x = (
imp["monthsWidth"]
+ (yri + 0.5) * (1.0 - imp["meansWidth"] - imp["monthsWidth"]) / 10
)
tp = topAt(x)
for mni in range(12):
lft = leftAt(
1.0
- imp["yearHeight"]
- (mni + 1)
* (1.0 - imp["yearHeight"] - imp["totalsHeight"])
/ (len(months) + 1)
)
for dgi in range(3):
ax_full.add_patch(
matplotlib.patches.Rectangle(
(tp[0] - 0.015 + dgi * 0.015 - 0.005, lft[1] - 0.01),
0.01,
0.02,
fill=True,
facecolor=(0, 0, 0, 0.1),
)
)
ax_full.add_patch(
matplotlib.patches.Rectangle(
(tp[0] - 0.015 + dgi * 0.015 - 0.005, lft[1] - 0.01),
0.01,
0.02 * pmatrix[tidx],
fill=True,
facecolor="blue",
)
)
tidx += 1
# Add the monthly means
tp = topAt(1.0 - imp["meansWidth"] / 2)
for mni in range(12):
lft = leftAt(
1.0
- imp["yearHeight"]
- (mni + 1)
* (1.0 - imp["yearHeight"] - imp["totalsHeight"])
/ (len(months) + 1)
)
for dgi in range(3):
ax_full.add_patch(
matplotlib.patches.Rectangle(
(tp[0] - 0.015 + dgi * 0.015 - 0.005, lft[1] - 0.01),
0.01,
0.02,
fill=True,
facecolor=(0, 0, 0, 0.1),
)
)
ax_full.add_patch(
matplotlib.patches.Rectangle(
(tp[0] - 0.015 + dgi * 0.015 - 0.005, lft[1] - 0.01),
0.01,
0.02 * pmatrix[tidx],
fill=True,
facecolor="blue",
)
)
tidx += 1
# Add the annual totals
lft = leftAt(imp["totalsHeight"] / 2)
for yri in range(10):
x = (
imp["monthsWidth"]
+ (yri + 0.5) * (1.0 - imp["meansWidth"] - imp["monthsWidth"]) / 10
)
tp = topAt(x)
inr = 0.0
for dgi in range(4):
ax_full.add_patch(
matplotlib.patches.Rectangle(
(tp[0] - 0.0225 + dgi * 0.015 - 0.005, lft[1] - 0.01),
0.01,
0.02,
fill=True,
facecolor=(0, 0, 0, 0.1),
)
)
ax_full.add_patch(
matplotlib.patches.Rectangle(
(tp[0] - 0.0225 + dgi * 0.015 - 0.005, lft[1] - 0.01),
0.01,
0.02 * pmatrix[tidx],
fill=True,
facecolor="blue",
)
)
tidx += 1
# Render the figure as a png
fig.savefig("place.png")
